Vargus / Thread Turning VARGUS เป็นผลิตภัณฑ์จากประเทศอิสราเอล ใช้ชื่อผลิตภัณฑ์ในกลุ่ม คือ VARDEX ผลิตภัณฑ์เน้นทาง เครื่องมือการทำเกลียว ด้วยเครื่องมิลลิ่งและเครื่องกลึง รวมถึง เครื่องมือทำเกลียวขนาดเล็กอีกด้วย ________________________________________________________________ |
Thread Turning|
Download catalog |
NEW 2010 INTERACTIVE PDF CATALOG!!!
English
Metric EE (18MB)
English
Inch (23.5MB) NEW 2010 CATALOG!!! Vardex Thread Milling & Thread Turning Main Catalog
English
Metric EE (18MB)
English
Inch (23.5MB) |
 |
Vardex has earned its reputation as
the #1 indexable system worldwide. Vargus, a pioneer in its field, developed the Vardex indexable laydown thread turning insert technology over 50 years ago. The Vargus patented designs continue to be the industry standard. With over 6000 different tools, Vargus offers the largest range of Thread Turning solutions to the machining specialist. Some even call the Vardex Catalog "The Bible of Threading"! |
Vardex - The Largest Thread Turning Tooling Program in the World |
|
 |
The Vardex Thread Turning tooling
program includes external and internal solutions such as: Standard tools for medium and fine pitches U-style inserts for threading large pitches V-style inserts for extra-large pitches Multi+ - mass production And the newest style - V6, a 6-corner laydown threading insert! |
Vardex - Revolutionizing Threading Technology for 50 Years!! |
|
 |

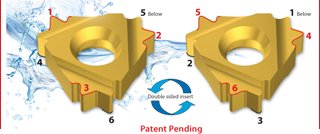

The V6 insert from Vargus offers revolutionary gains in productivity as well as tremendous savings in tooling costs with its six-cutting corner system. Doubling the number of corners of conventional systems from 3 to 6, V6 has the ability to halve users' tooling costs by enabling all six corners to be applied to the same application, using existing toolholders. |
|
Vardex - 26 Different Thread Standards!!! Vargus offers the widest range of thread standards in the industry!! |
|
 |
|
|

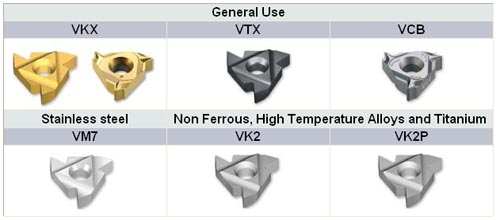

Vardex - A Carbide Grade for Machining Almost Any Material! |
|
| As #1 in thread
turning, Vargus has a carbide grade to effectively thread almost
any material. In addition to its general purpose grades, any
threading insert can be coated in a specialty grade for the most
demanding machining tasks. For example, Vargus' VM7 grade is the
industry's best answer for machining stainless steel in high-production
environments. Other specialty grades available include: VTX - an excellent choice for general purpose and steel VKX - excellent in medium- and high-speed working environments VBX - Carbide grade for high-volume steel production VM7 - a unique performer when threading stainless steel VK2 - uncoated grade for non-ferrous, cast iron and titanium-alloy materials VK2P - highly polished for exceptional performance for high quality srface finish in aluminium. |
|
|

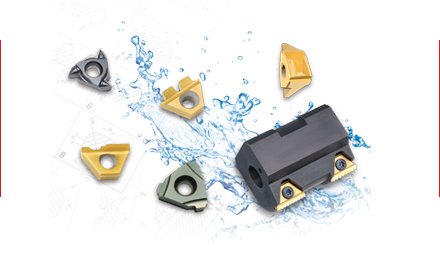

Vargus Specials - Thinking out of the box... Obviously, the standard range of products can't provide a solution to every threading challenge. When a non-standard cutting insert or toolholder is needed, Vargus engineers will provide you with the answer within hours, reasonably priced, and with the shortest possible delivery time. Vargus threading specialists use information accumulated in a database of thousands of tailor-made tools manufactured over the years to find the tool which is just right for any non-standard application or thread form. Your local Vargus dealer will help you define the challenge. |
|
|
|
|
|

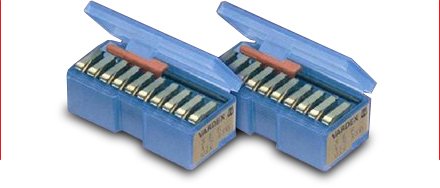

...AND... only Vardex threading inserts come with a Key and screw in every box! |
|
|
|
|
